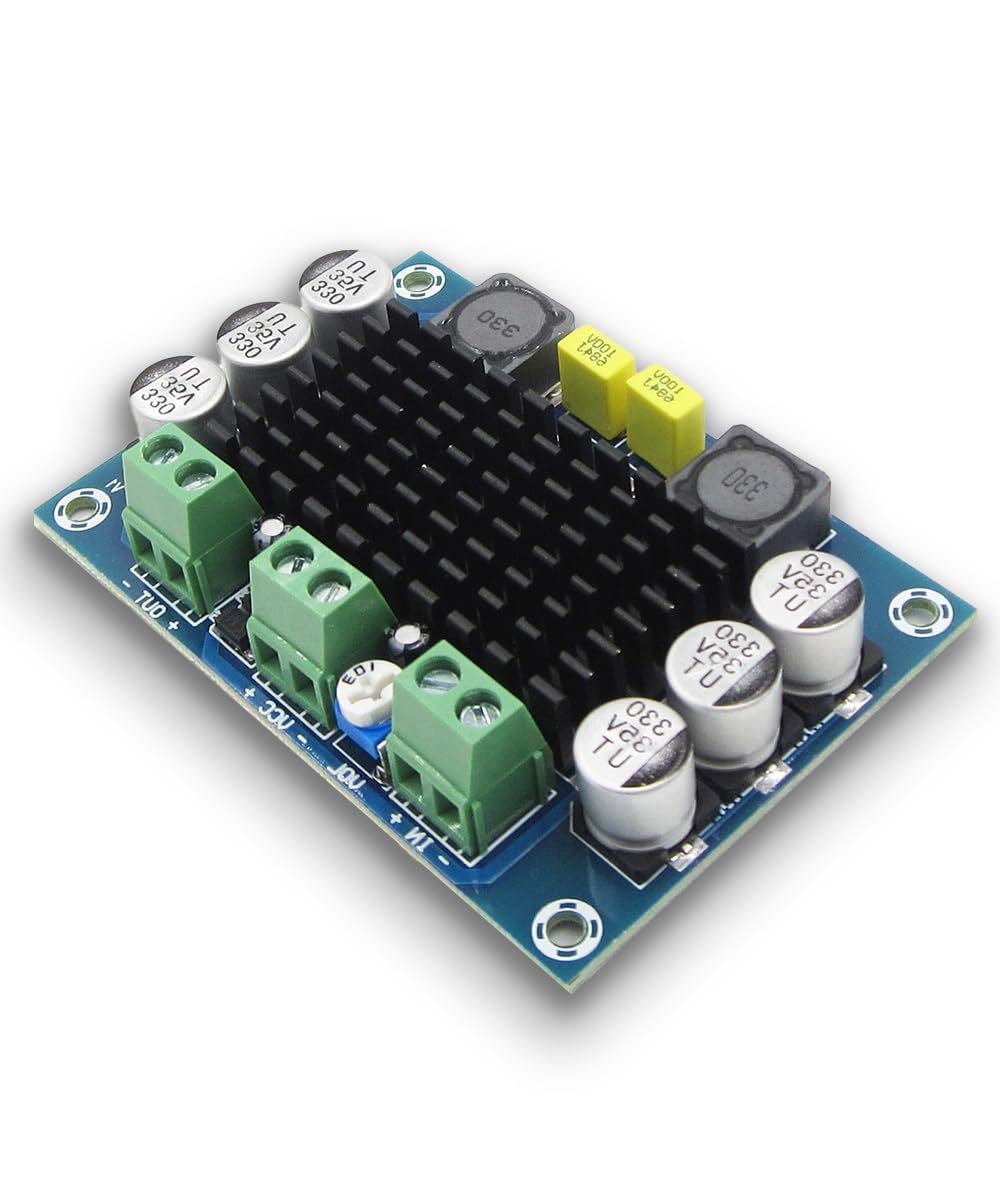

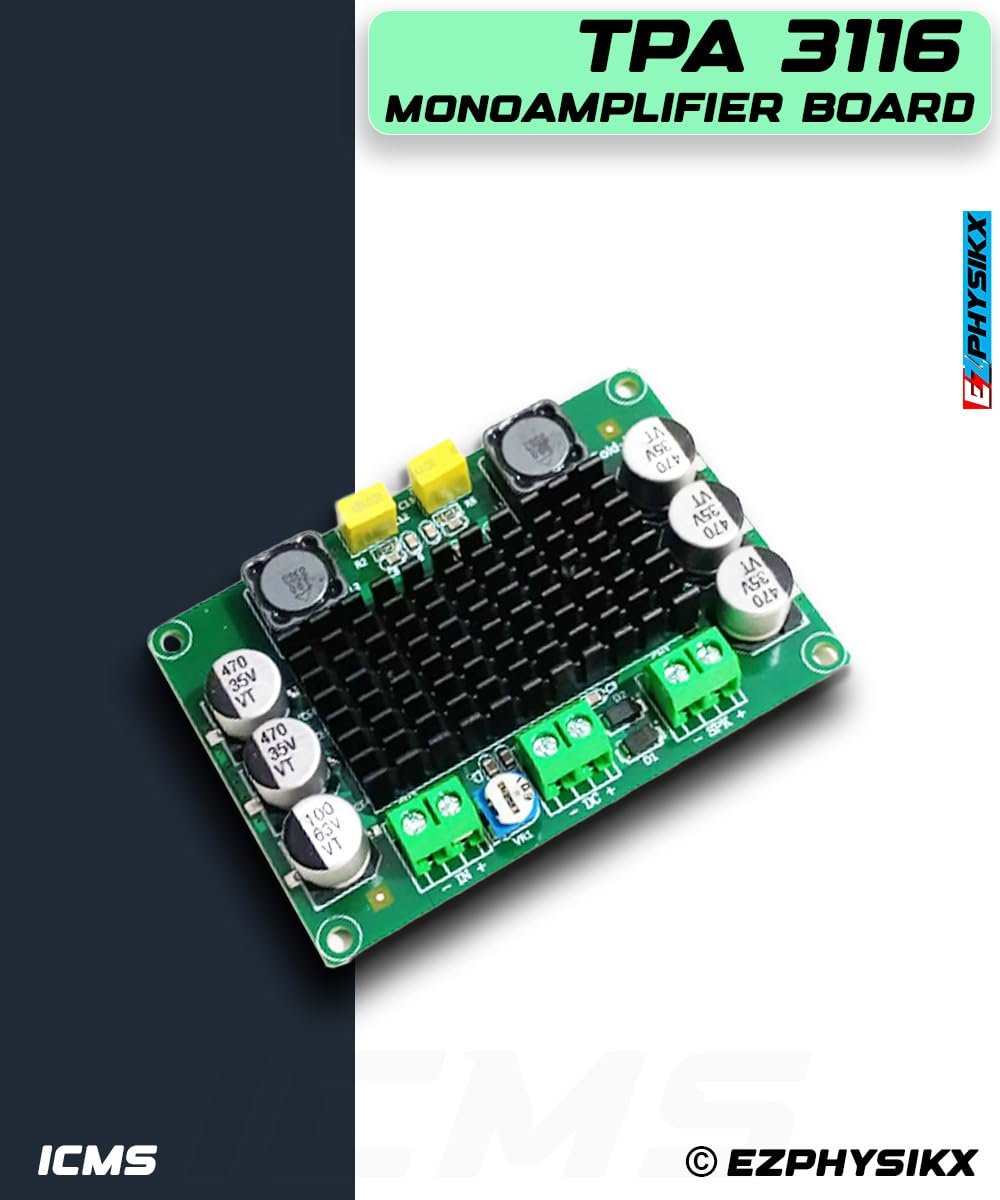

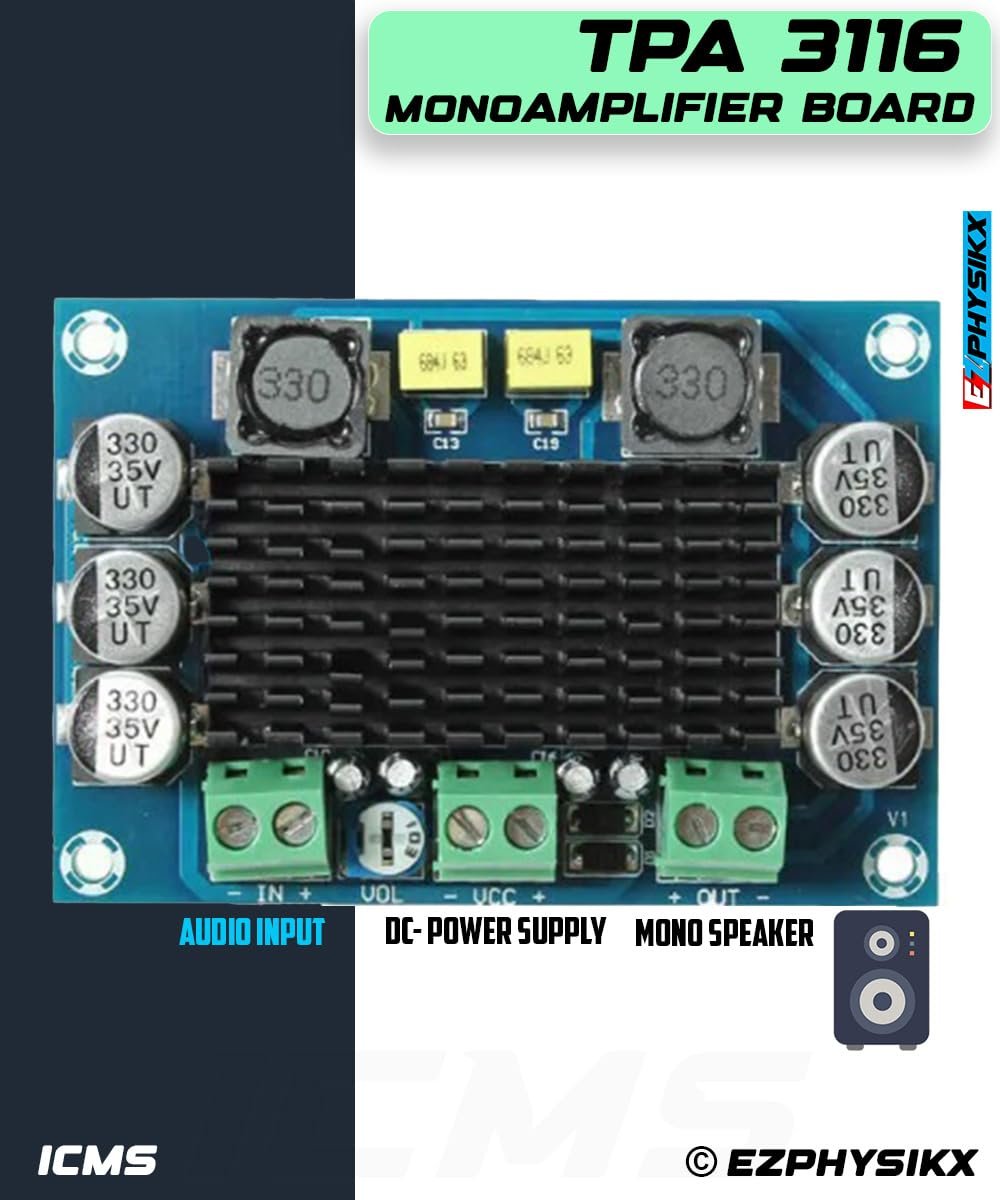

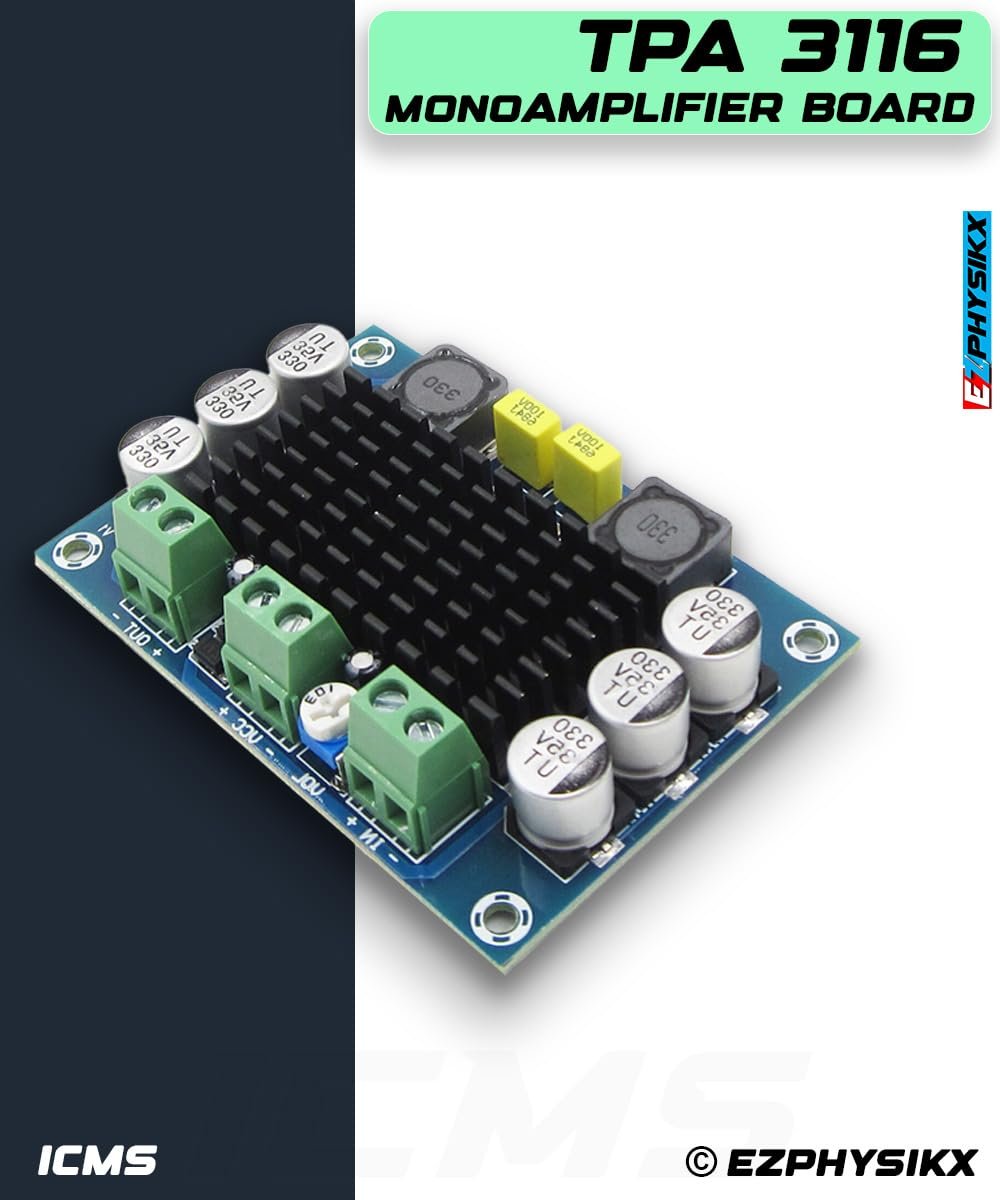

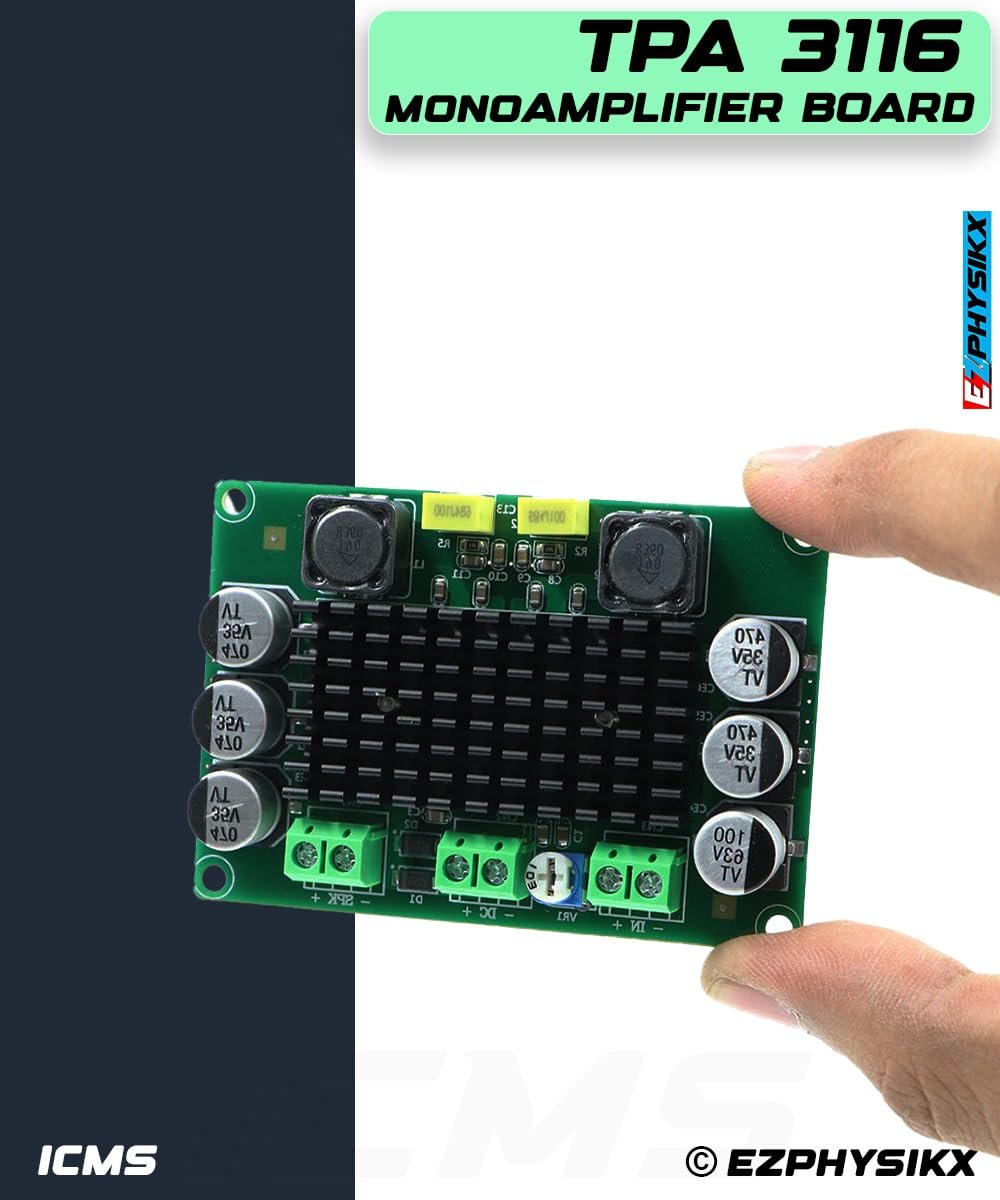

EZPHYSIKX TPA3116 / TPA 3116 D2 Module Class D 100 watt, MONO – Digital, DC12-26V, DIY Car Vehicle Computer Speaker DIY Home Theater Audio System with Integrated speaker Protection Circuit.

Description

Price: ₹999 - ₹549.00
(as of Dec 09, 2024 05:52:40 UTC – Details)

Buy On Amazon

The TPA3116D2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices.
The TPA3116D2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

Chip: TPA3116D2
Output Power: 100W at MONO
SNR: 100db
Channels: Mono
Wide Voltage Range: 4.5 V to 26 V
Efficient Class-D Operation
Efficiency : >90% Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size
Load (min):4 (Ω)

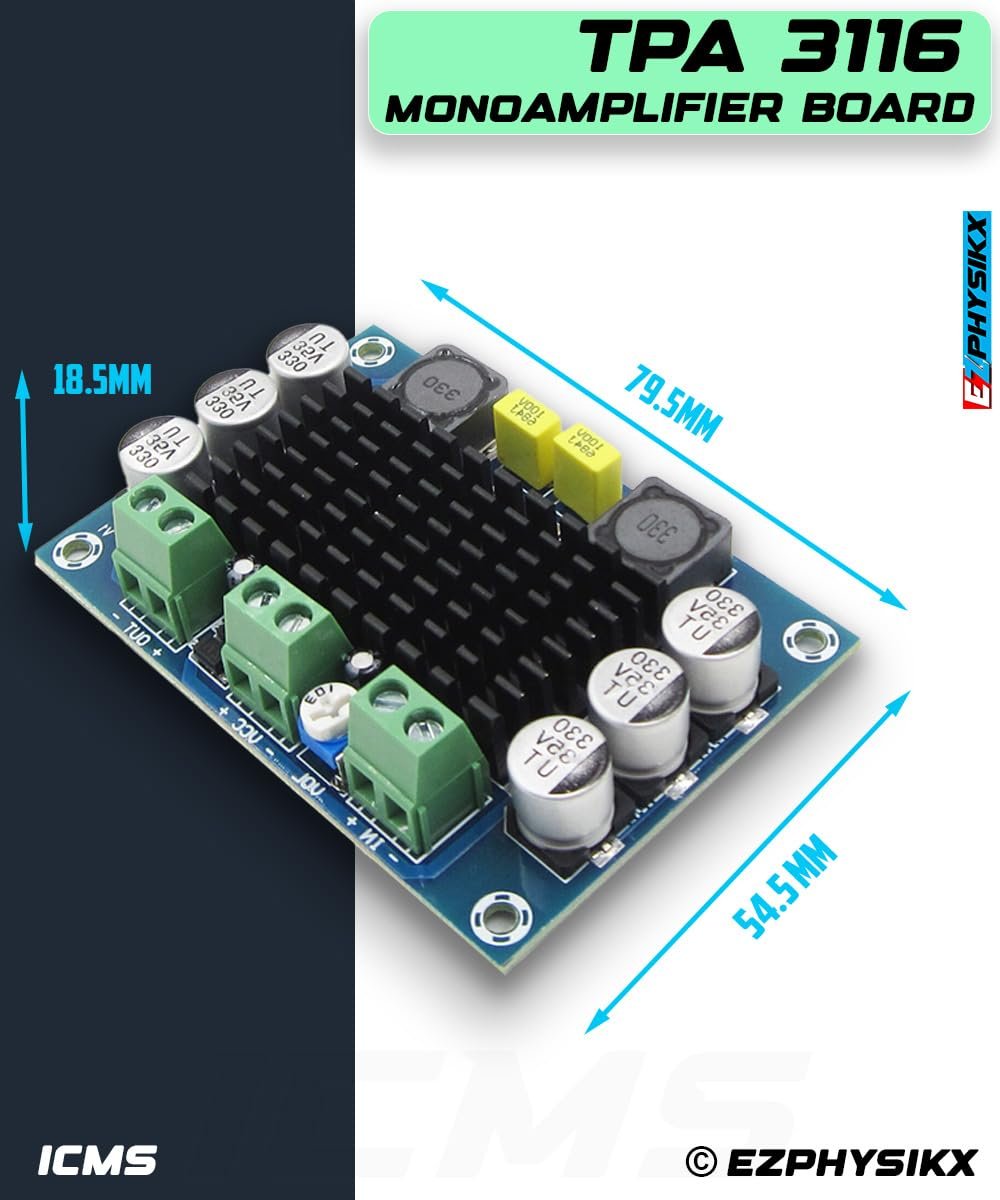

Module/Board Size: 79.5 * 54.5 * 18.5 mm
Applications
Mini-Micro Component, Speaker Bar, Docks
After-Market Automotive
CRT TV
Consumer Audio Applications
Mono amplifer, single channel
Chip type: TPA3116D2
Working voltage: DC 4.5V to DC 28V
Recommended power voltage: DC 24V

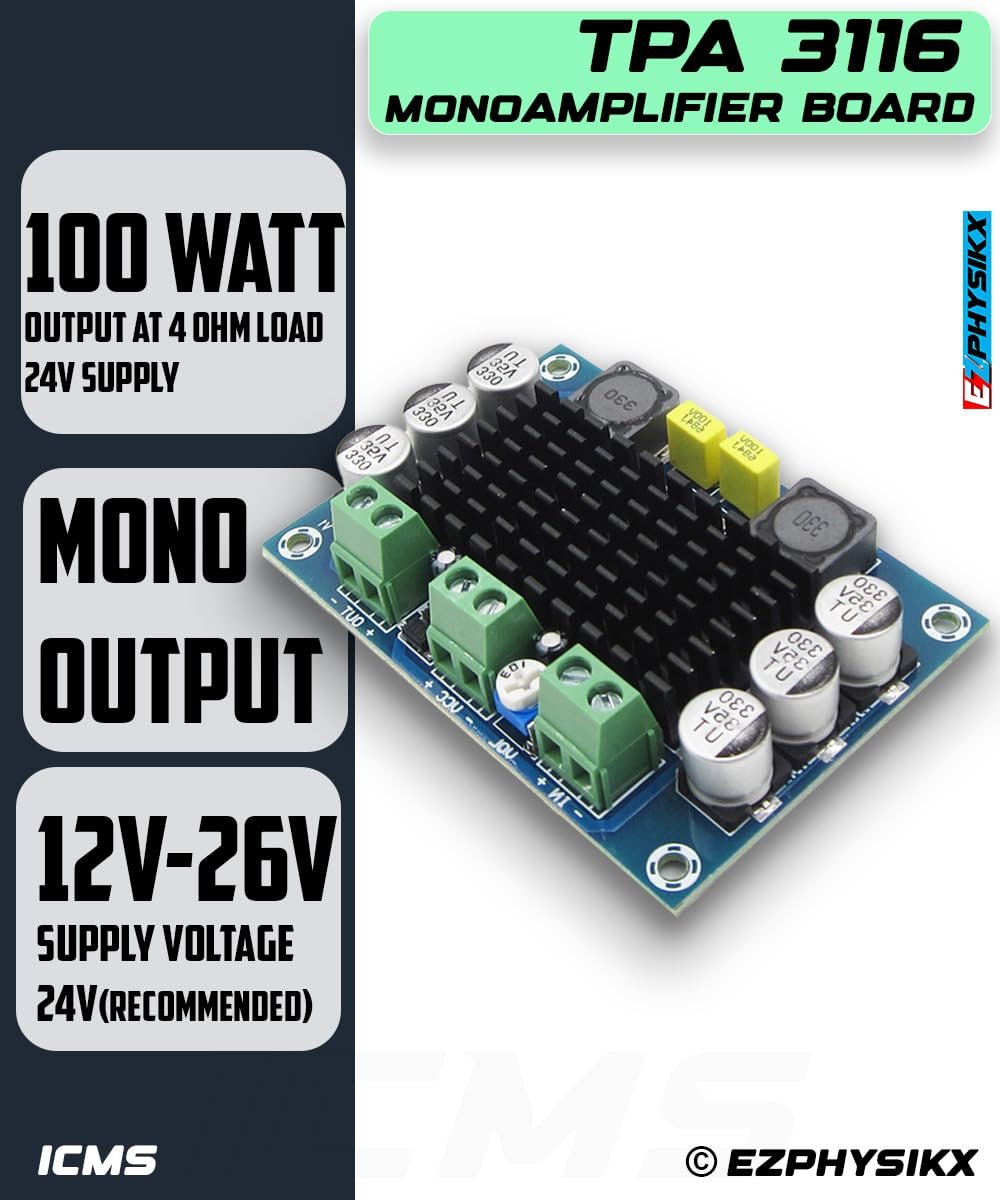

Output Power: 100W at 4ohm load.
